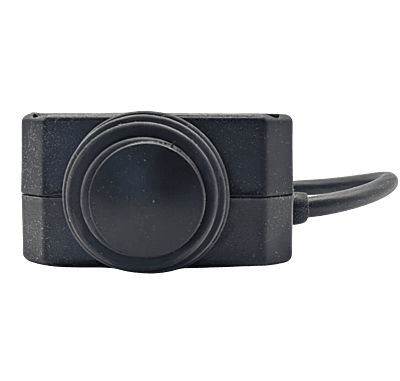

202302
$466.00
Tags:

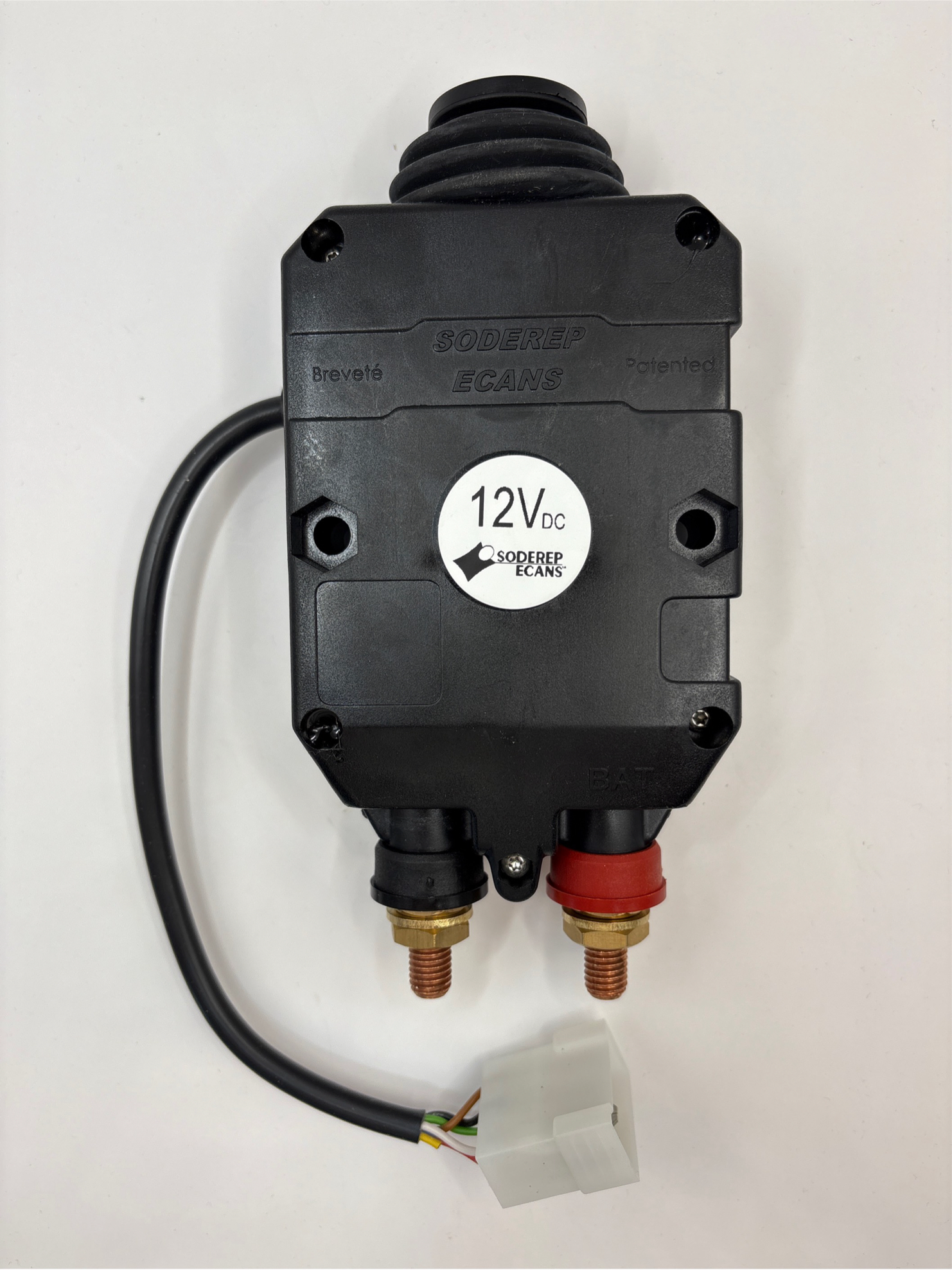

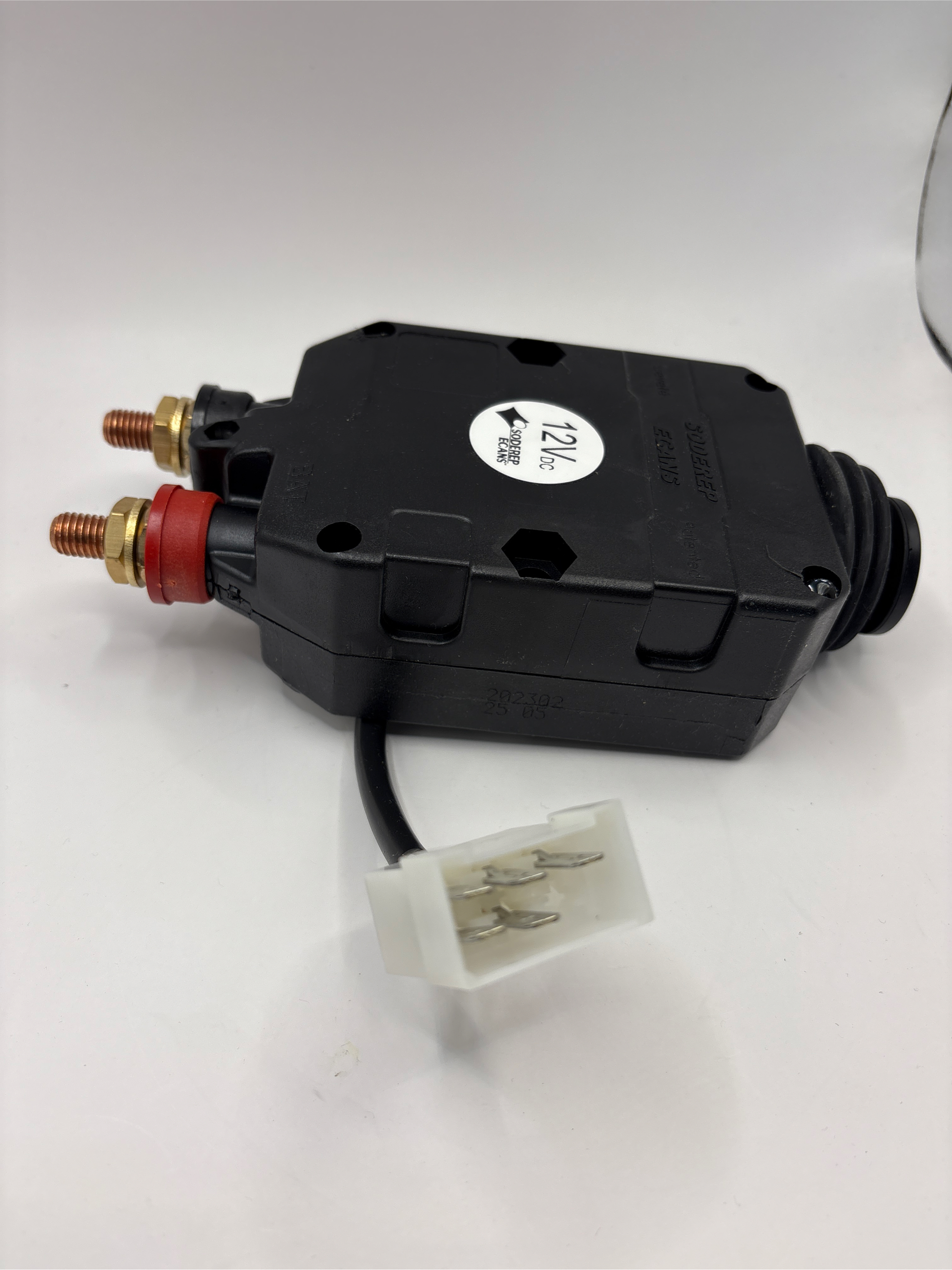

Soderep Ecans Bistable Single Pole Battery Main Switch S250 Series 300A - 12V - Monostable Electrical Control Switch - Positive Battery Cut-Off
Choose Quantity
Product Details
MAIN CHARACTERISTICS
Rated voltage 12 / 24 V
Temperature range - 40 to +85 °C
Housing material PBT glass filled
Housing color Black
Weight 1000 g
Protection degree (ISO20653) IP42
Compliant with directive REACH - 2000/53/CE
Approved according to ISO10133
Power Circuit
Continuous rating 300 A
Overload 1500 A (15 s)
Max DC voltage 16 / 32 V
Terminals size M10
Contact resistance <1 mΩ
Terminals length 10 mm
Tightening torque 14N.m±20%
Terminals material Silver plated copper
Control Circuit
Voltage range 10.5 - 16 V / 18 - 32 V
Control signal Monostable
Switching current 10 A - 12 V / 7.3 A - 24 V (200 ms)
Idle current in OFF position 0 mA
connection 6 wires cable
Auxiliary Control
Type Manual
Auxiliary Circuit
Type Status feedback (changeover relay)
Continuous rating 100 mA max
Screwing torque M8 : 10N.m ±10%
p/n voltage polarity
Product Selection
202312 12 V + CUT-OFF
202313 24 V + CUT-OFF
202314 24 V GND CUT OFF
202315 12 V GND CUT OFF
