203465
$275.00
Tags:

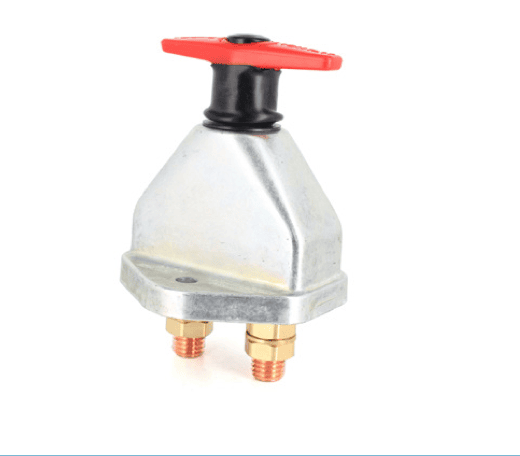

Soderep Ecans Single Pole Battery Main Switch S300 Series - 600A - 48V Max - Manual Control - Red Fixed Thermoplastic Handle
Choose Quantity
Product Details
Technical Data Main Characteristics Polarity GND or + CUT-OFF Temperature range - 40 to +85 °C Housing material Zinc alloy Housing color Metallic Weight 600 g Protection degree (ISO20653) IP65 Compliant with directive REACH (2006/121/EC) - ELV (2000/53/EC) power circuit Max DC voltage 16 / 32 V Contact resistance <20 mΩ Terminals material Copper Control circuit Type of handle Fixed / 2 positions
