200021K
$120.00
Tags:

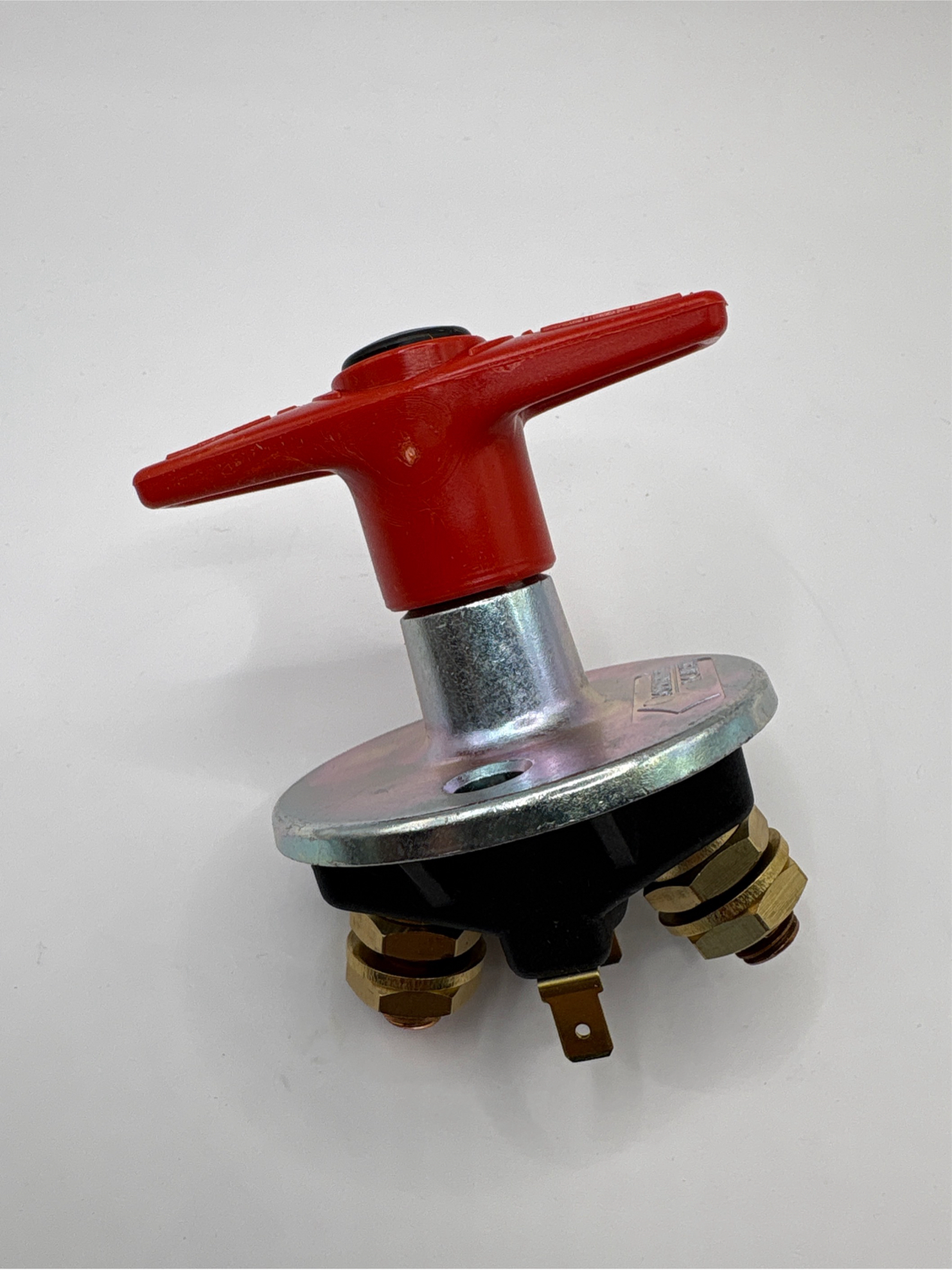

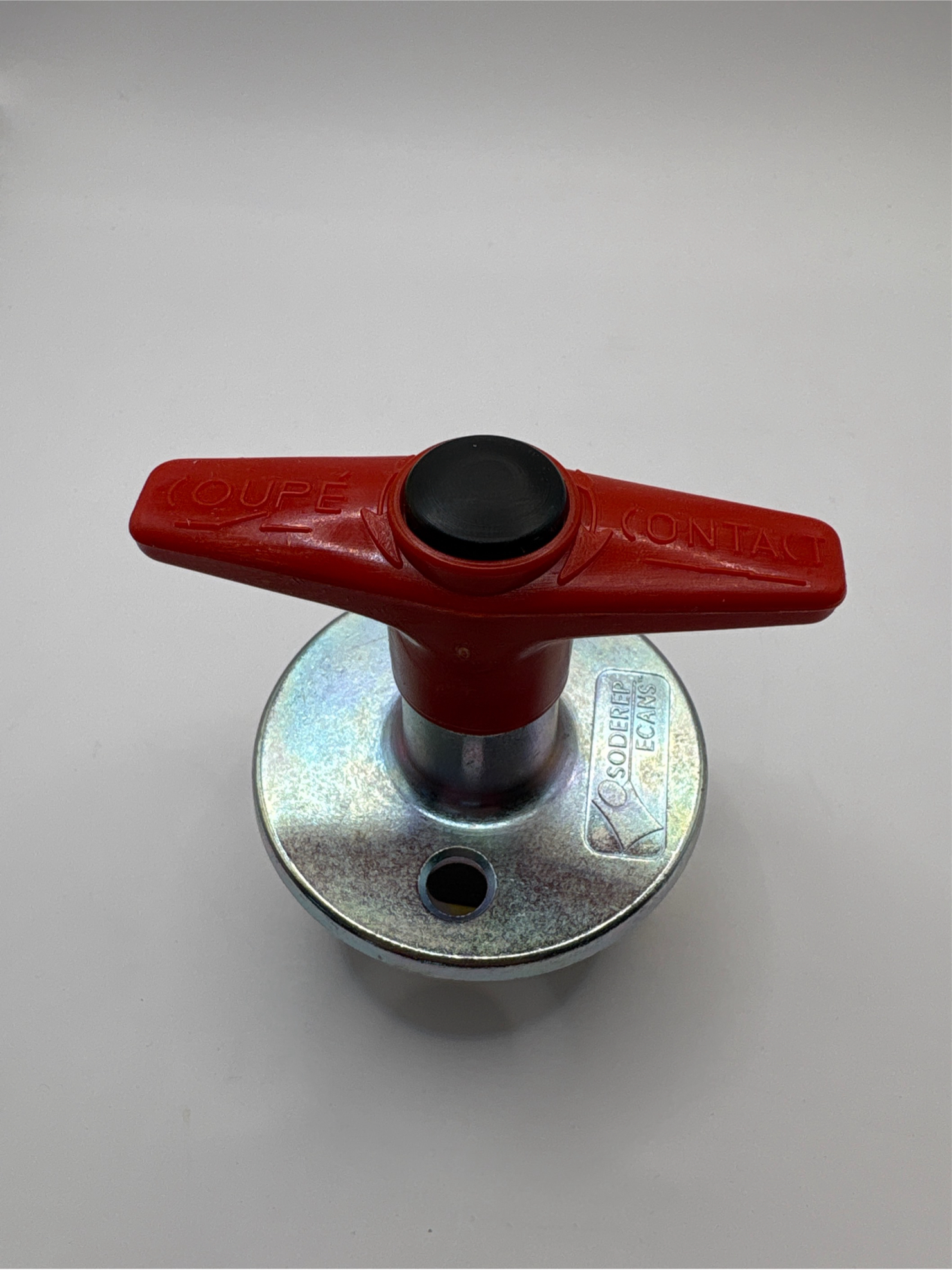

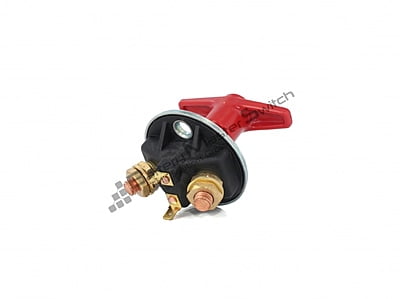

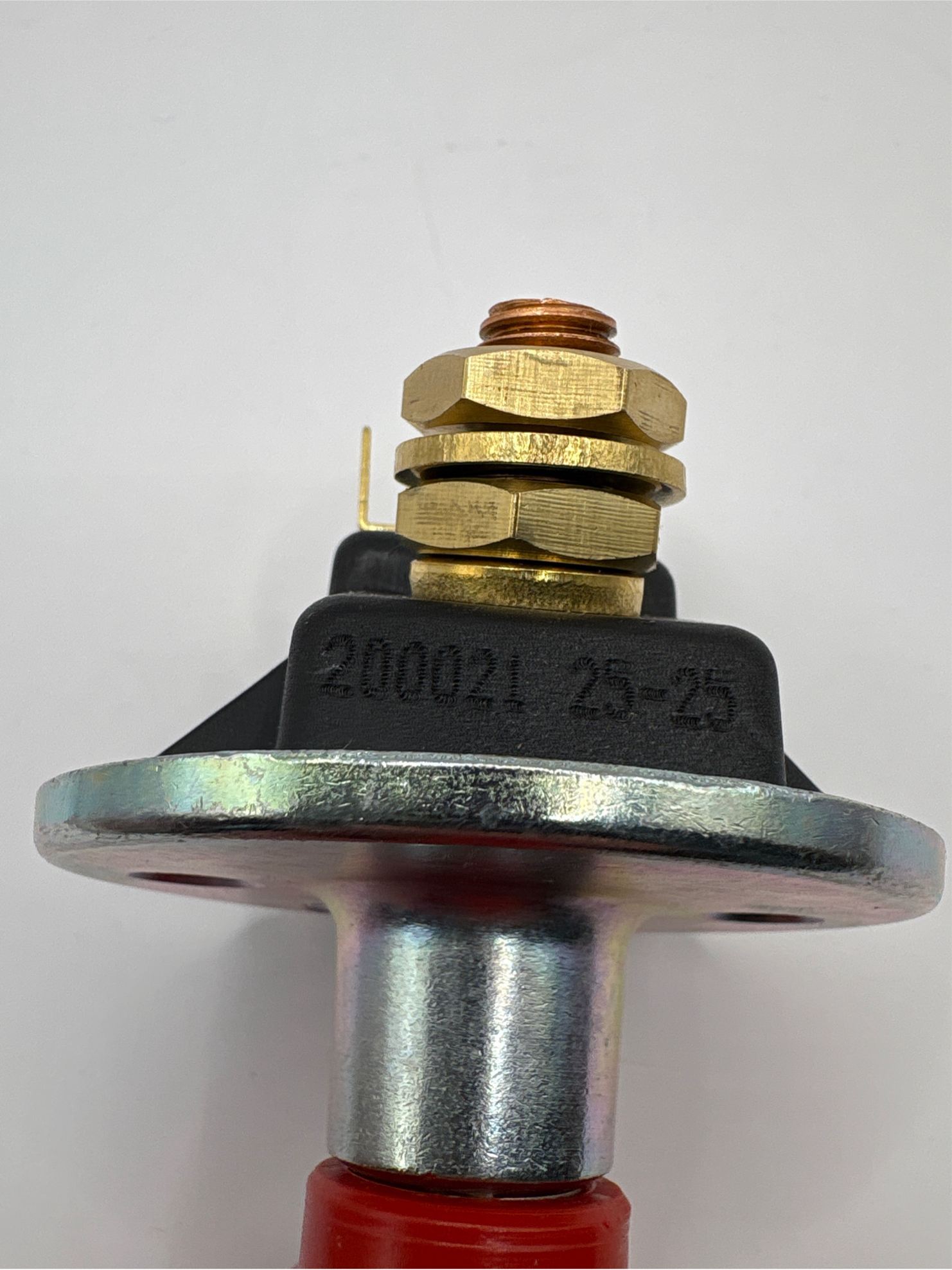

Soderep Ecans Single Pole Battery Main Switch 150A - 48V Max - Manual Control - Sm Auxiliary Circuit - Red Fixed Thermoplastic Handle Removable For The Mounting
Choose Quantity
Product Details
Technical Data Main Characteristics Housing: color / material Metallic / Zinc alloy Weight See table Protection degree (ISO 20653) See table Compliant with directive REACH (2006/121/EC) - ELV (2000/53/EC) power circuit Continuous rating 150 A Overload 1000 A (5 s) Max DC voltage 48 V Terminals size M10 Contact resistance <10 mΩ Terminals length 4 mm Tightening torque 9 N.m±10% Terminals material Copper Control circuit Type of handle Fixed / 2 positions ON-OFF AUXILIARY circuit Type See table Continuous rating See table
