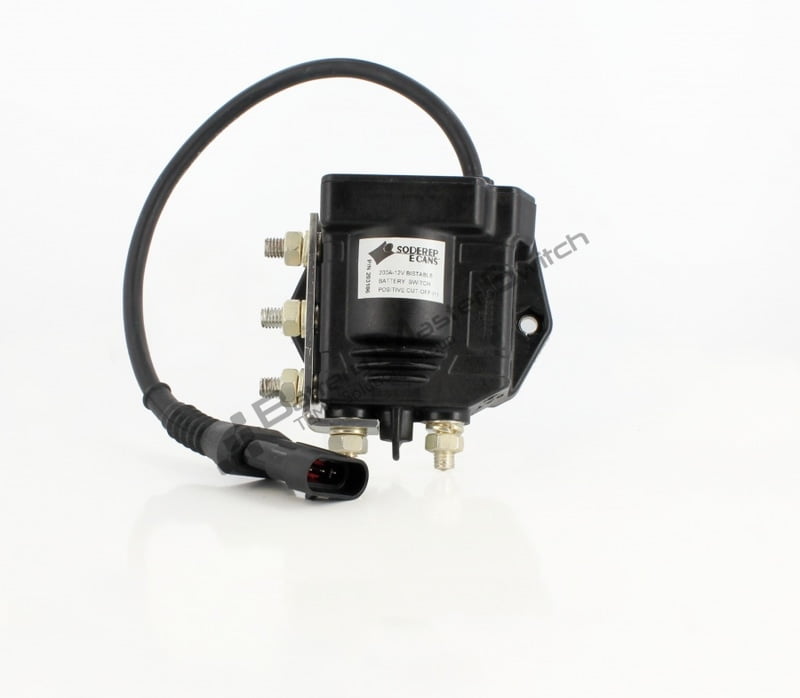

203255 (204033)

Technical Data Main Characteristics Rated voltage 12 V / 24 V Temperature range- 40 to +85 °C Protection degree (ISO 20653) IP65 / IPX9K Housing material PBT reinforced Flame retardant V0 Weight < 700 g Compliant with directive REACH/ELV 2000/53/EC power circuit Continuous rating 200 A Overload 800 A (10 s) Max DC voltage 16 V / 32 V Temporization (opening delay) 15 s (wiring option) Terminals size M8 Contact resistance <1 mΩ Terminals length 6 mm Tightening torque 12N.m±0.2 Terminals material Silver plated copper Control circuit Voltage range 10.5 - 16 V / 18 - 32 V Control signal ON / OFF (1/0) Switching current 17 A - 12 V or 10 A - 24 V (200 ms) Idle current in OFF position <1mA Connector 4-pin TYCO Superseal Auxiliary circuit Type of circuit LED control Continuous rating 12 W (1A-12 V / 0.5 A-24 V)
