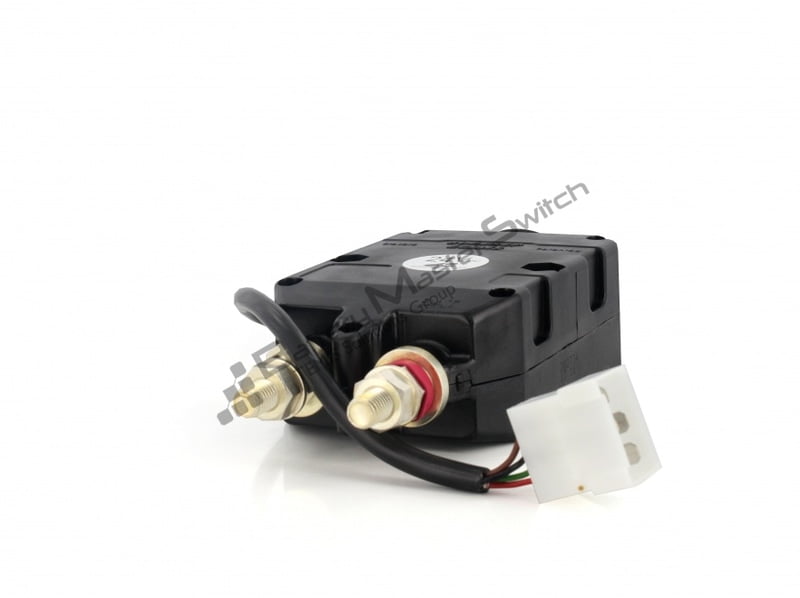

202734A

Technical Data Main Characteristics Rated voltage 12 / 24 V Polarity + CUT-OFF Temperature range- 40 to +85 °C Housing material PBT glass filled Housing color Black Weight 1150 g Protection degree (ISO20653) IP65 (except manual control) Compliant with directive REACH - 2000/53/CE Approved according to ISO10133 power circuit Continuous rating 300 A Overload 1500 A (15 s) Max DC voltage 16 / 32 V Temporization (opening delay) 5 sec Terminals size M10 Contact resistance <1 mΩ Terminals length 10 mm Tightening torque 14N.m±20% Terminals material Silver plated copper Control circuit Voltage range 10.5 - 16 V / 18 - 32 V Control signal ON-OFF (1-0) Switching current 10 A - 12 V / 7.3 A - 24 V (200 ms) Idle current in OFF position 0 mA Connection 6-Pin connector auxiliary control Type Manual auxiliary circuit Type Relay control output for D+ circuit Continuous rating 5 W (20 A relay)
